How to Build a Tag Board for a Slate/Clapperboard

Tookit DIY: How to Build a Tag Board for a Slate/Clapperboard

Many AC's create something called a tag board to help them out on set. What's a tag board? It's a book-like piece of Plexiglas you slap on the back of the slate that holds camera reports, can have pre-made marks and even hold other essentials like filter, MOS and various Velcro tags. So where do you get one? You don't. You make it and here's how.

There are a few essential things needed on or near you as a 2nd Assistant Camera: paper tape for marking, camera reports, and of course, the slate. Sometimes it can get cumbersome lugging these three things around even if you have a ditty bag to carry them.

A giant tape roll can be useful, but also get in the way and you don’t always need every roll of tape. Camera reports should be easily accessible so they can be modified quickly before the information is lost in the on set hustle. A common mistake new 2nd’s usually make is to never put the slate down, but that doesn’t mean it shouldn’t always be close by.

Many AC’s solve these problems by making what is called a tag board or a slate board or a mark board. Whatever name you want to apply, the principles are the same: it’s a book-like piece of Plexiglas you slap on the back of the slate that holds camera reports, can have pre-made marks and even hold other essentials like filter, MOS and various Velcro tags. So where do you get one? You don’t. You make it and here’s how.

In the end what you get is this:

Finished Slate, Clapperboard Tagboard

Materials needed:

  • Small sheet of Plexiglas (something about as big as two of your slates i.e. 2 ft x 2 ft)
  • Velcro (the real stuff not the cheap stuff)
  • Gaffers tape or duct tape
  • Two office supply style sandwich clips

As you can see, the supply list is very minimal. This is part of the reason I highly suggest every AC should make one. With a little bit of time and love you can make a tool that is invaluable to your job and relatively cheap to make.

Step 1: Measure out the size

The first step is to decide how big you want your board to be. It should be small enough to fit on the back of your slate, but take up a sizable portion of it. As you can see in the picture above, mine takes up a large chunk of real estate on the back of my slate, but I didn’t want it to be exactly the same size otherwise it’d take more time to line it up when I attach it to the back instead of being able to slap it on quickly.

It’s important to note in this step that whatever size you decide to make your board, you have to measure out TWO pieces of Plexiglas approximately the same size.

Step 2: Cut the Plexiglas

At Home Depot or Lowe’s I believe you can ask or pay an associate to do this for you with a laser cutter. I didn’t have this luxury. I do NOT condone unsafe practices when cutting the Plexiglas. Do it carefully, with precaution and make sure you know what you’re doing. With that said, I ended up resorting to hacking away with an exacto knife against the Plexiglas. It took awhile, but I didn’t have any more serious knives around me at the time.

Step 3: Tape it together

Using gaffers or duct tape, line the edges of the Plexiglas with the tape and fold the strips over on each side evenly. The purpose of this is so that the rough edges of the Plexiglas are protected by the tape. In this case, I think duct tape is better since it is smoother, but multiple layers of gaff tape would work well also. Do this individually for each piece of Plexiglas you have.

Once each piece of Plexiglas has been lined sufficiently enough that it won’t cut you from handling it, lay them next to each other like an open book. Tape the inside of the “fold” and the outside as well, connecting the two pieces so that they can open and close like a book and remain together.

Step 4: Add the Velcro

There are really only two important pieces of Velcro that are needed. Place a small square on the edges of the inside of each side of the Plexiglas to allow them to stick together. This way when you’re carrying it around on the slate it isn’t flopping about. An alternative to Velcro-ing it on the inside is to create a kind of string (as I did with tape in mine, you can see it with the orange tape) as a kind of latch to keep it shut when you don’t have it open.

Aside from the mechanism to keep it closed, this is where the true customization comes into play. Place Velcro, soft or hard side, wherever it’ll be the most useful for you. I took one of the inside pieces of the Plexiglas to use as a place to store filter tags and other tags. For this I used soft side Velcro (since that is the side most commonly found on matte boxes), but I also put some hard side Velcro there too just in case.

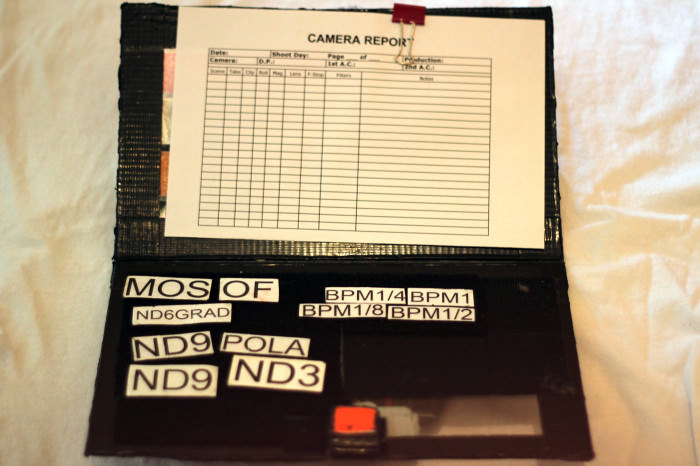

Slate Clapperboard Tagboard 2

The inside of the tagboard can contain paperwork, like camera reports, as well as filter tags.

Step 5: Add the clips

The (almost) last step is to add the two clips to the board to hold down camera reports. They shouldn’t be too large and you only need about two. These are useful to hold not only camera reports but shot lists, notes, and any other type of paper that you might need on you.

Step 6: Velcro the Slate

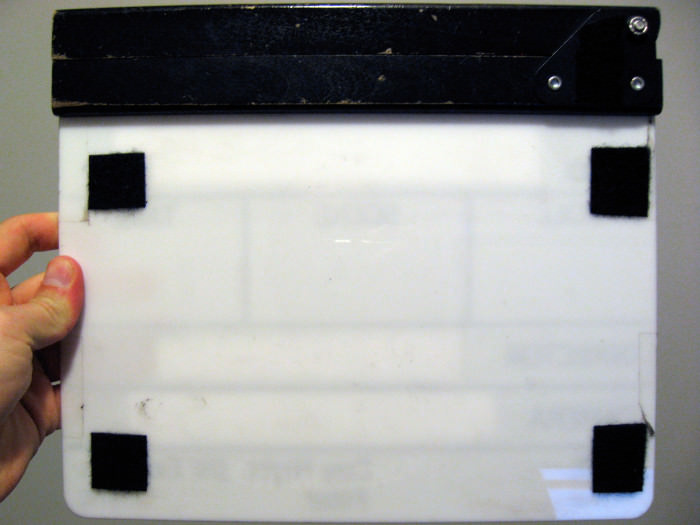

Back of Slate with Velcro

The four black squares are soft side pieces of velcro to hold the tagboard

Attach Velcro to the back of the slate and then also to the back of the tag board so that you can easily attach/detach it from the slate. I used four squares in the corners but it’s up to you how you best see fit to achieve this.

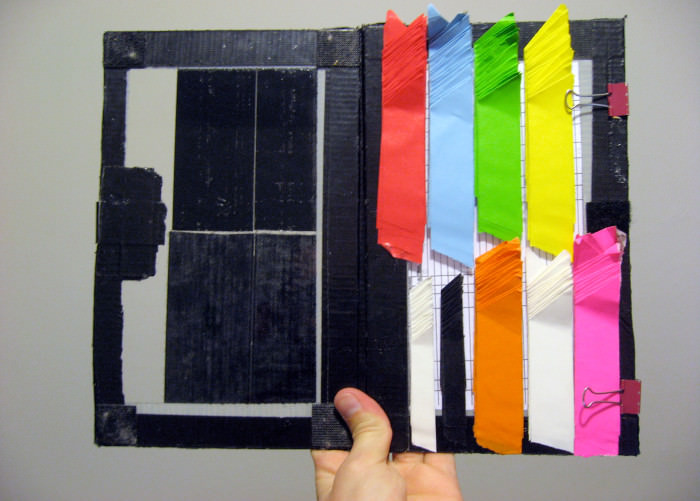

Slate Clapperboard Tagboard Back

Note the four velcro squares on the left side (backside) of the tagboard

Step 7: Add the usefulness!

The last step is to add the tape for marking, fill the board with camera reports and place your tags in there. Make sure that you add your tape to the FRONT of the board and not the backside that attaches to the slate.

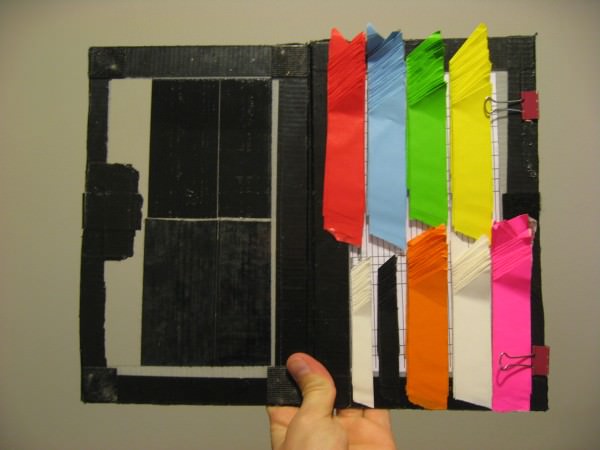

The Finished Product

The Completed Slate Tagboard

Once all this is done you now have a convenient way to carry tape for marking, filter tags, camera reports and various other items in one compact place on the back of the slate, which is going wherever the camera goes anyway.

I find the most useful aspect of having a tag board is that during marking rehearsals you can carry it around instead of fumbling through your tape roll, especially if it’s a scene involving multiple actors and thus multiple tape colors. You can have the board, grab off a piece of tape and move on.

It’s also useful for filling out camera reports because it gives you a hard surface to write on and a convenient place to keep them for easy access.

The best part is that you can keep this on the back of the slate so when you don’t need it, it’s not something extra to carry around. Also, if you end up using somebody else’s slate like the sound guy’s time code slate, all that is needed is a few strips of Velcro on the back. If they don’t want you to do that, well, it’s still a useful tool separate of the slate.

If you have any suggestions, comments or questions about this tutorial let me know in the comments, I’ll be happy to address them.

  • Salil

    Note to everyone: be careful not to use too much velcro to attach your marks board to a dumb slate.  When you’re working on a show with a smart slate and decide to remove your marks board, the results of super strong velcro could be less than favorable.  In my case I was in a rush and the slate was likely brittle from age so it cracked in half.  Film tools offers a replacement slate board, but depending on your sticks it may or may not be a compatible width.  It also might be difficult to remove the remaining slate board from the slot in the sticks if the board has been glued in place.

    • Evan

      Good call on that Salil. It’s something I hadn’t thought of before

  • Pingback: How to Build a Film Slate for Under $15 — Tips for Filmmakers and Camera Assistants - The Black and Blue()

  • Pingback: 12 Do-It-Yourself Projects for Camera Assistants - Tips for Filmmakers and Camera Assistants - The Black and Blue()

  • Pingback: Camera Assistant's Toolkit: The Ultimate Guide | The Black and Blue()

  • Lawrence Marshall

    Not sure if you’ll see this Evan, but one of the photos doesn’t load anymore for step 4.  I think one can tell what to do anyway though.  Also, I’ve been posting as a guest as I can’t sign into facebook anymore through the site!

    • Evan

      Ah thanks for the heads up on that Lawrence! As for the Facebook login that’s strange… I don’t have much control over the comments plugin since it’s a third-party, but hopefully they fix it soon!

  • Dylan

    What is the technique for making the tags with the triangle like you have on your tag board and also not loosing their stickiness.

    P.S. I just tricked out my slate, ill put up some pics when I get home.

  • BM

    I’m a little confused– does the tag board open and then you have access to your camera reports?

    • Evan

      Exactly. The camera reports stay inside the tag board to keep them from getting damaged by dirt, rain, whatever. While you’re using them, you could put them on the outside though.

  • TRB

    I was always taught not to have anything on the back of the dumb slate as it should be able to be backlit with ambient light and not to cause “shadows” on the front

    • Evan

      If there is not enough front-lighting on the slate, you simply take the tagboard off. With it on, it doesn’t cause any weird shadows because it takes up the entire back of the slate.

  • Tim

    Hey, I’m just wondering what the OF tag is for?

    • Evan

      OF stands for Optical Flat which is basically a plain piece of glass that you put in the matte box to protect the lens (for instance, from dirt, blood squibs, etc.)
